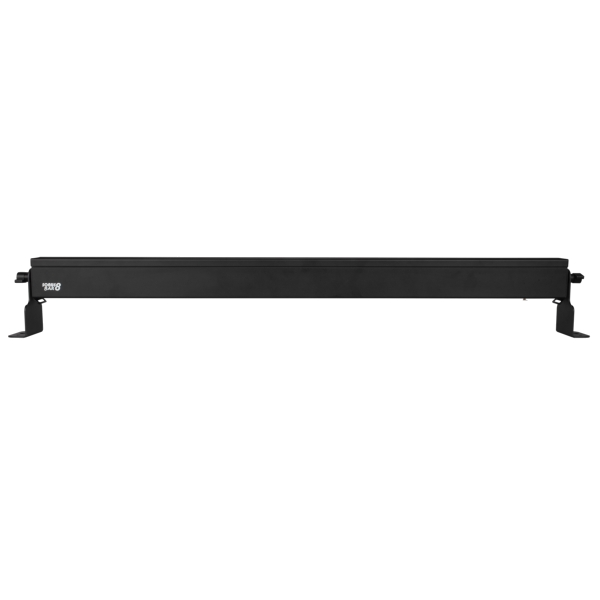

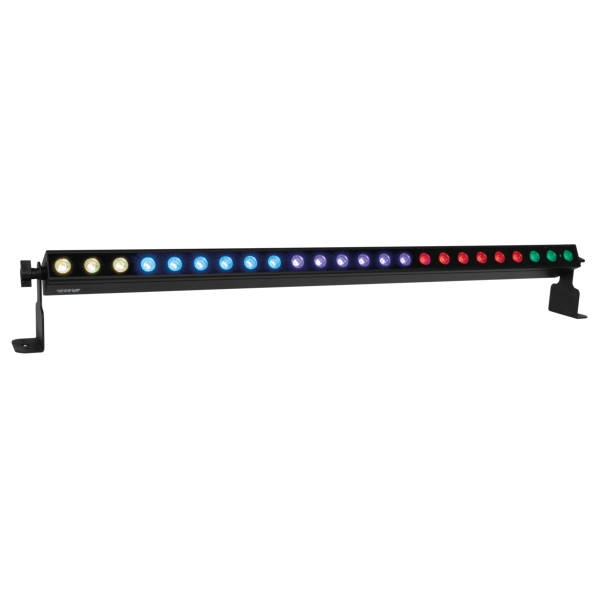

Showtec Sonus Bar 8 RGBW LED Batten

Name: Showtec Sonus Bar 8 RGBW LED Batten
Brand: Showtec
Price: 149.94 GBP
Availability: InStock

Price Each £124.95 (£149.94 Including VAT at 20%)

REF: JP114008

Quantity:

Showtec Sonus Bar 8 RGBW LED Batten

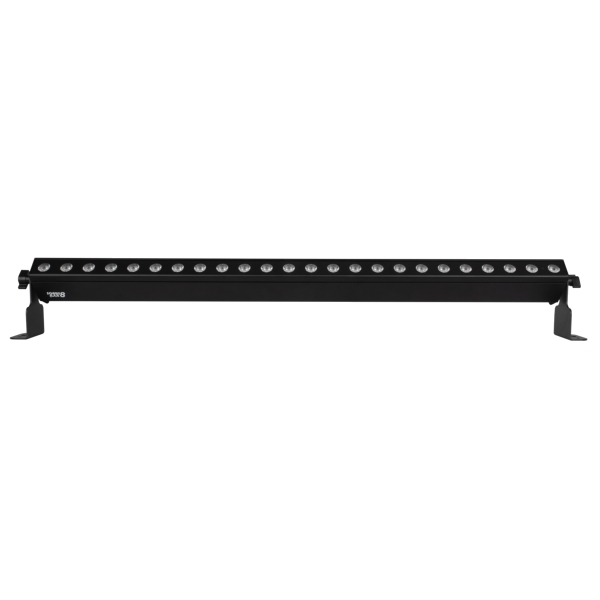

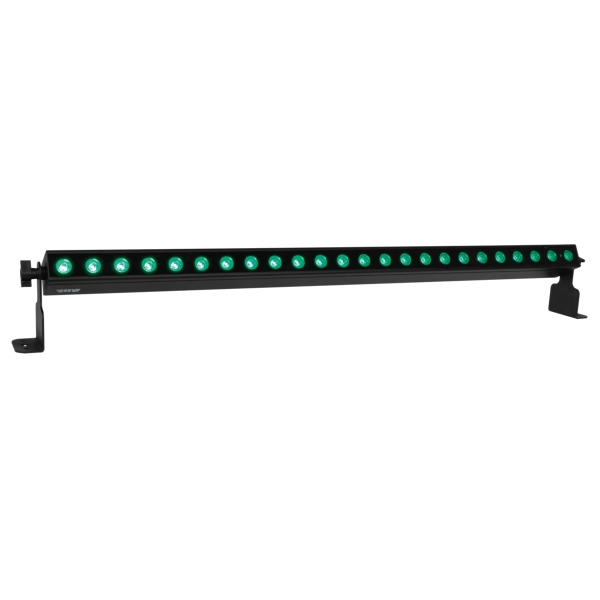

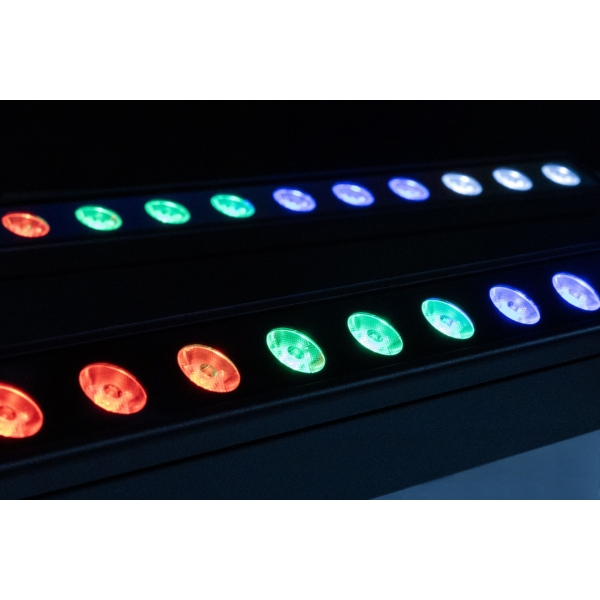

The Showtec Sonus Bar 8 RGBW LED Batten is a light bar with 24 RGBW LEDs of 2 W each. The LEDs can be controlled in up to 8 sections via up to 38 DMX channels. It also features a high-quality sound-controlled mode, which is useful in many occasions and for professionals and beginners alike. It can also work in stand-alone mode with built-in programs, manual settings, in master/slave mode and it supports RDM. The Showtec Sonus Bar 8 is convection-cooled, so it is completely silent in operation.

Click Here for Printer Friendly Version

Showtec Sonus Bar 8 RGBW LED Batten Features

- 24 RGBW LEDs
- Up to 8 controllable sections
- DMX/RDM, built-in program, sound, manual and master/slave modes
- Silent convection cooling

Showtec Sonus Bar 8 RGBW LED Batten Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 24
- Light Source Power: 2 W
- LED Colour Type: RGBW
- Refresh Rate: 1000 Hz
- Luminous Flux (Total): 924 lm

Optical:
- Beam Angle (Horizontal): 16.4 °
- Beam Angle (Vertical): 11.3 °

Control and Programming:
- Control Mode: Built-in Program, DMX, Manual, Master Slave, Remote, RDM, Sound
- DMX Channels: 4, 6, 10, 32, 34, 38
- Protocols: DMX, RDM

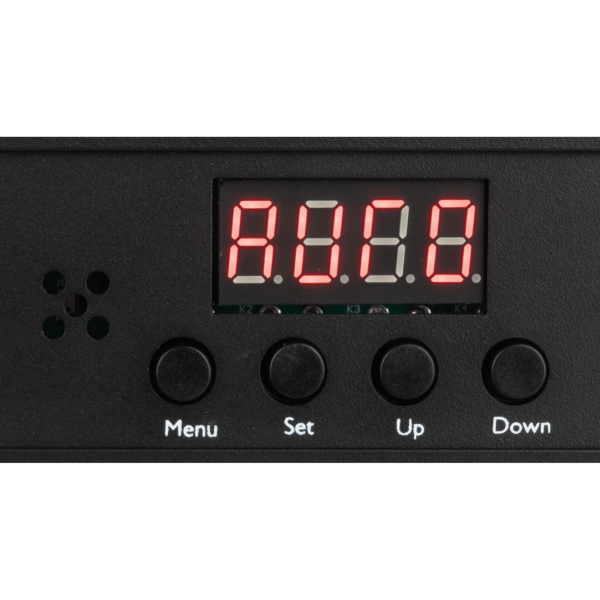

- Display: 7-segment

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-15 Hz

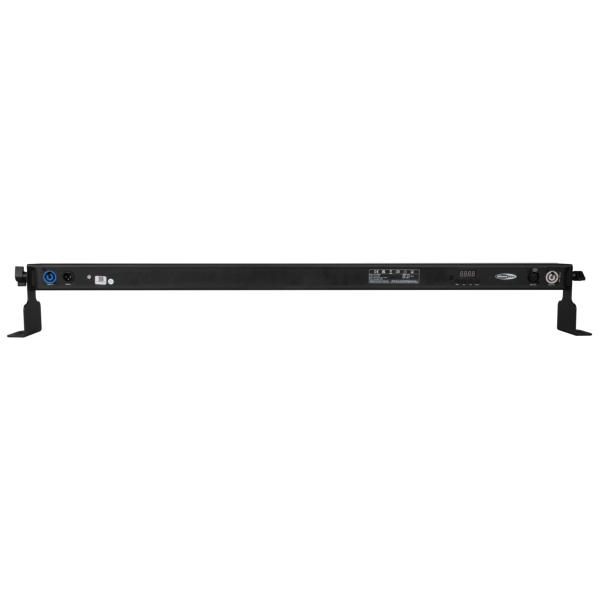

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 30 W

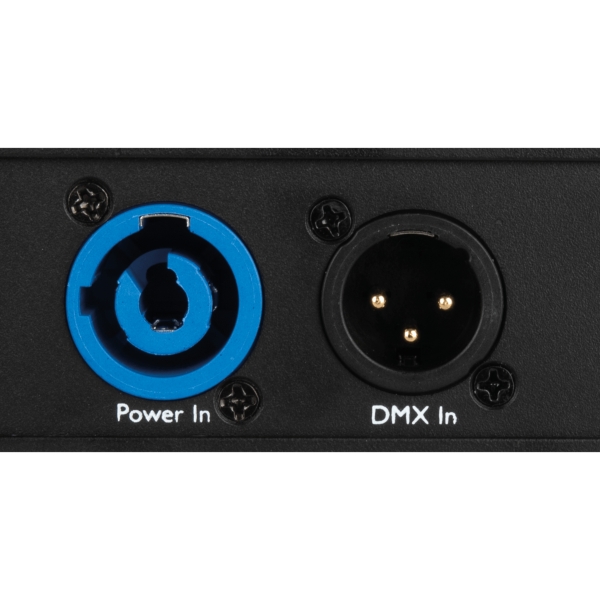

- Power Connector In: Power Pro Blue

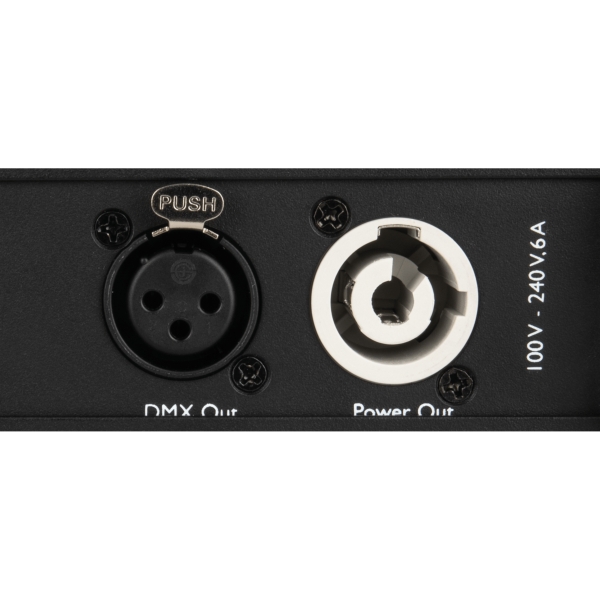

- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- Length: 1091 mm
- Width: 80 mm
- Height: 148 mm
- Weight: 3.1 kg (6.834 lb)
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black

Product Properties:
- Cooling: Convection

Rigging:

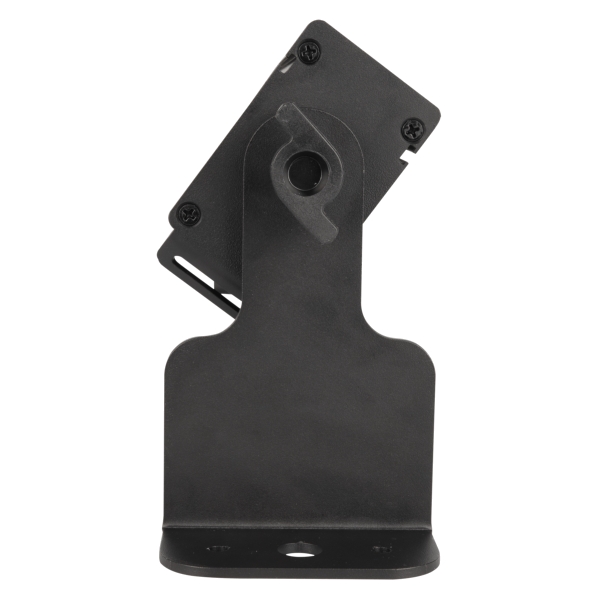

- Mounting Options: Clamp

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)
- Minimum Operating Temperature: -5 °C (23 °F)

Further Product Information Below

Showtec Sonus Bar 8 Manual (PDF)

Showtec Sonus Bar 8 Data Sheet (PDF)

Showtec Sonus Bar 8 Declaration of Conformity (PDF)
