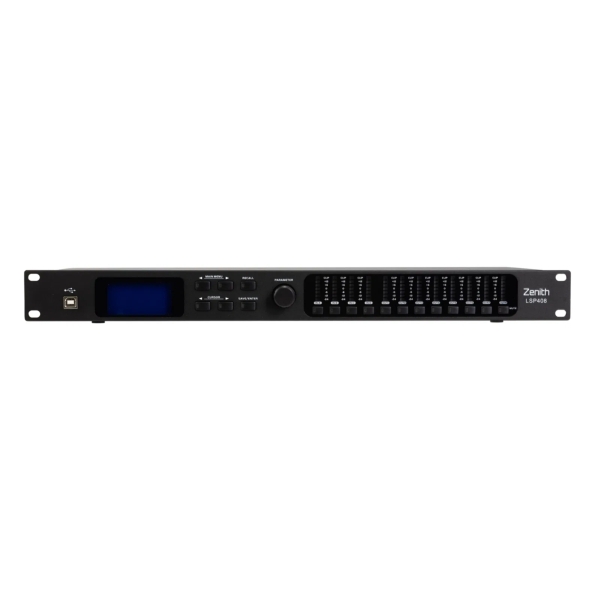

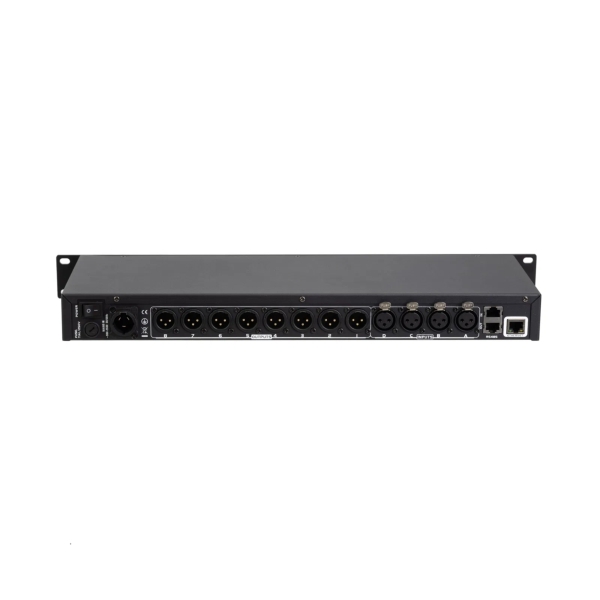

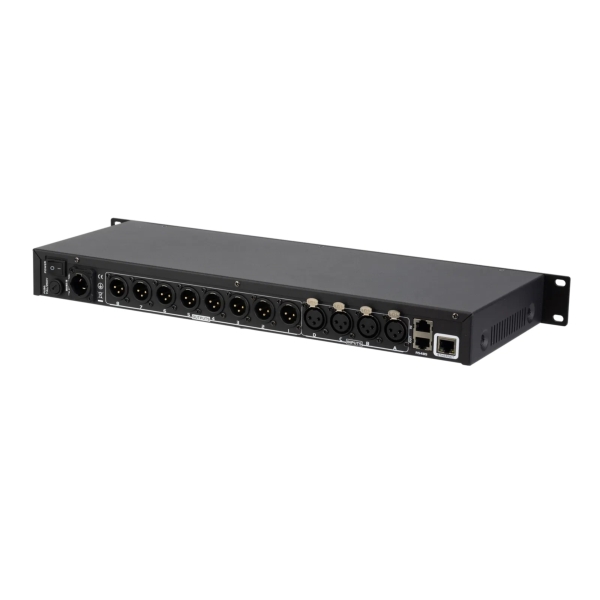

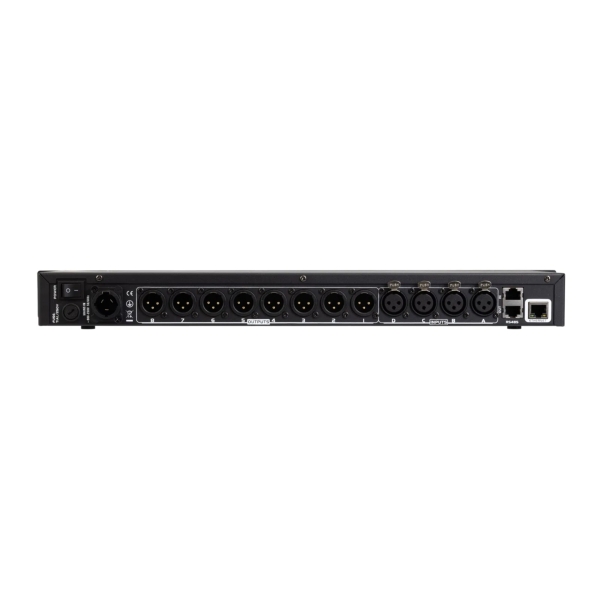

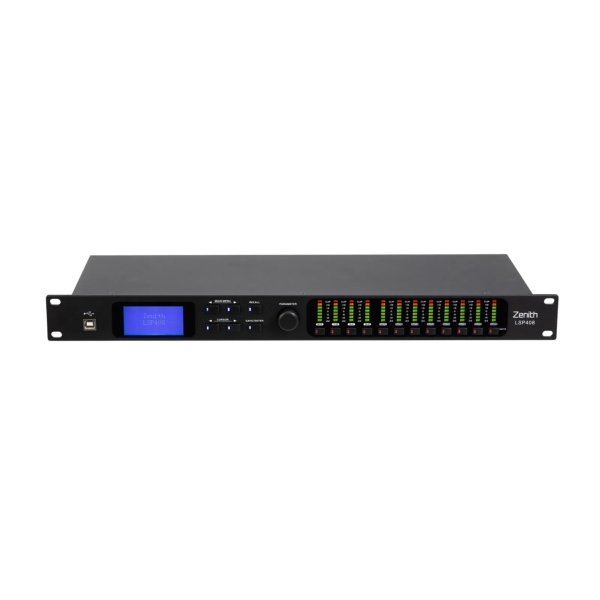

Zenith LSP408 MKII 4 in 8 out Loudspeaker Processor

Zenith LSP408 MKII Features

- 4 XLR inputs, 8 XLR outputs
- 24-bit DSP with high performance AD/DA converters
- 48kHz sampling rate
- Input/output level control with -40dB to +12dB range in 0.1dB increments
- 4 band PEQ (parametric EQ) for each input and 5 band PEQ (parametric EQ) for each output - each EQ features parametric, low shelf 6dB, low shelf 12dB, high shelf 6dB and high shelf 12dB
- PEQ frequency range: 19.7Hz thru 21.9kHz, gain range -30dB to +15dB, bandwidth: 0.017 to 4.750 octave
- Output high pass and low pass filter, each filter has multiple slopes and types
- Filter slopes: 12dB/Oct, 24dB/Oct,36dB/Oct, 48dB/Oct
- Filter types: Butterworth, Bessel or Linkwitz-Riley
- Up to 1 second of delay for each input and output, switchable and selectable
- Compressor for each input and output with adjustable threshold, ratio, attack-time, release-time and knee type
- Phase reverse for each input and output
- Copy function allows settings to be copied between channels
- Multi-channel parameters can be set simultaneously via the channel linking function
- Jog wheel control for parameter adjustment
- LCD display
- 7 segment LED level indicator for each input and output
- User friendly and intuitive Windows PC software on USB flash drive

Zenith LSP408 MKII Specifications

- Power supply: 90~250V, AC 50/60Hz
- Dimensions (H x W x D): 45 x 482 x 158mm
- Weight: 2kg

Further Product Information Below

Zenith LSP408 MKII Manual (PDF)
