B&C HF148 WaveGuide Flare for ME148 - 100 Degree Horizontal Dispersion

Price Each £32.90 (£39.48 Including VAT at 20%)

REF: JP115150

Quantity:

B&C HF148 WaveGuide Flare for ME148 - 100 Degree Horizontal Dispersion

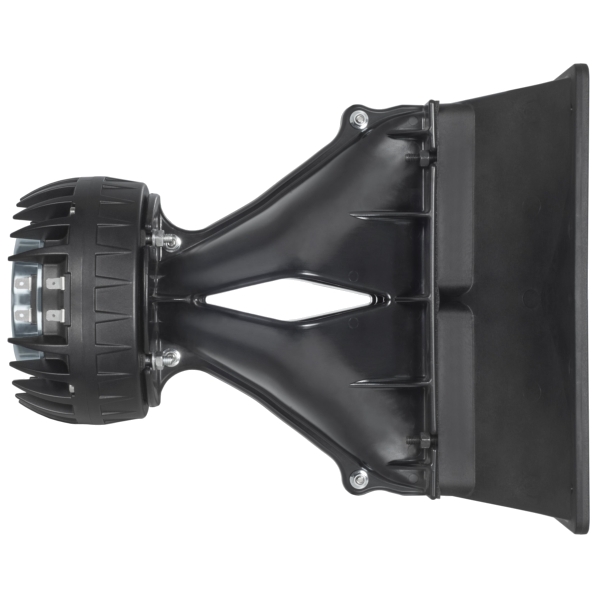

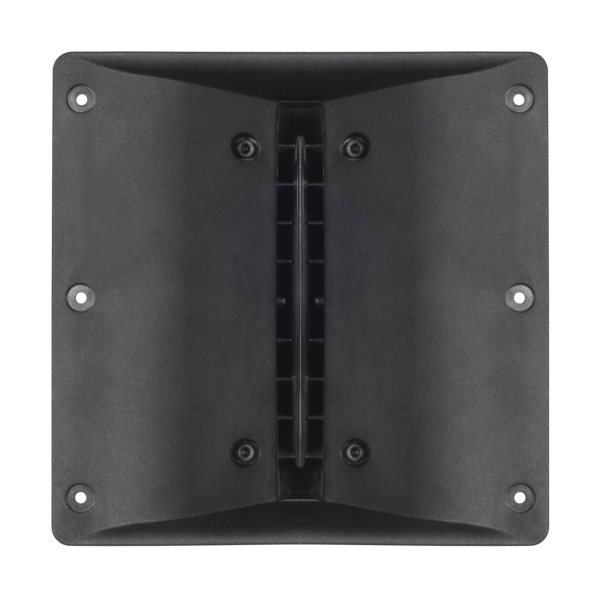

The B&C HF148 WaveGuide Flare for ME148.

Click Here for Printer Friendly Version

B&C HF148 WaveGuide Flare for ME148 Features

- Horn Flare specifically optimized for ME148
- 100° horizontal coverage

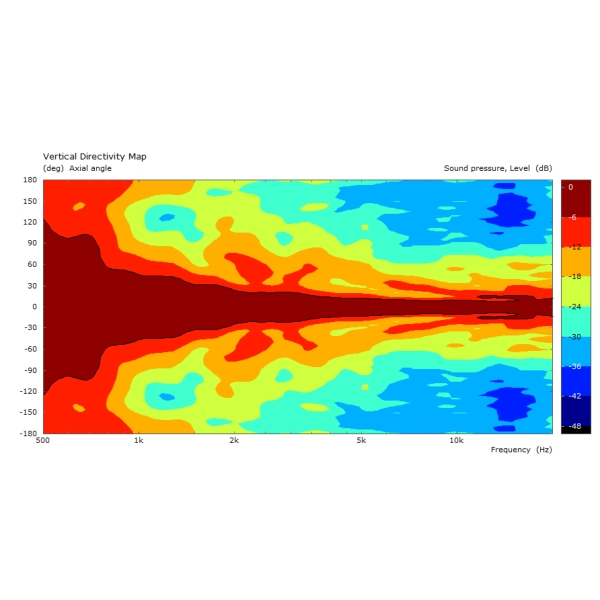

- Vertical coverage depends on configuration
- Very good loading and directivity control down to 700 Hz

B&C HF148 WaveGuide Flare for ME148 Specifications

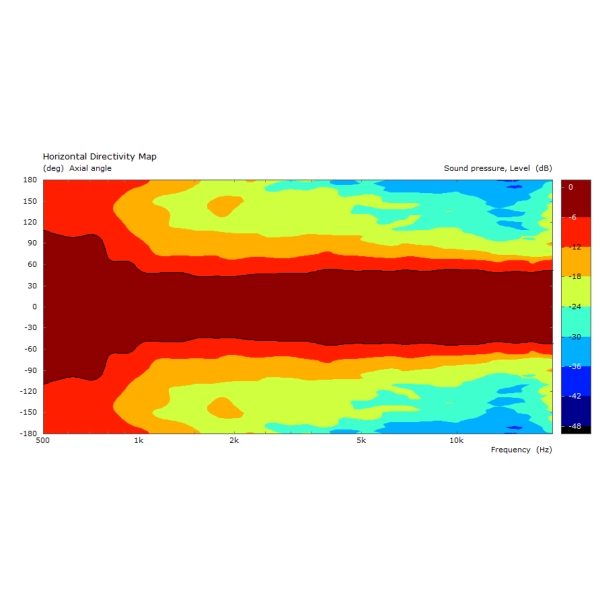

- Nominal Coverage Horizontal 100 °
- Material PC/ABS/GF blend
- Dimensions 260x260x75 mm
- Cutoff Frequency 0.7 kHz
- Design Constant Directivity

Mounting And Shipping Info:
- Net Weight 0.58 kg (1.28 lb)
- Shipping Weight 0.85 kg (1.87 lb)
- Shipping Units 1 pcs
- Shipping Box 280 x 270 x 100 mm

Further Product Information Below

B & C HF148 Data Sheet (PDF)

B & C HF148 Technical Drawing (PDF)
