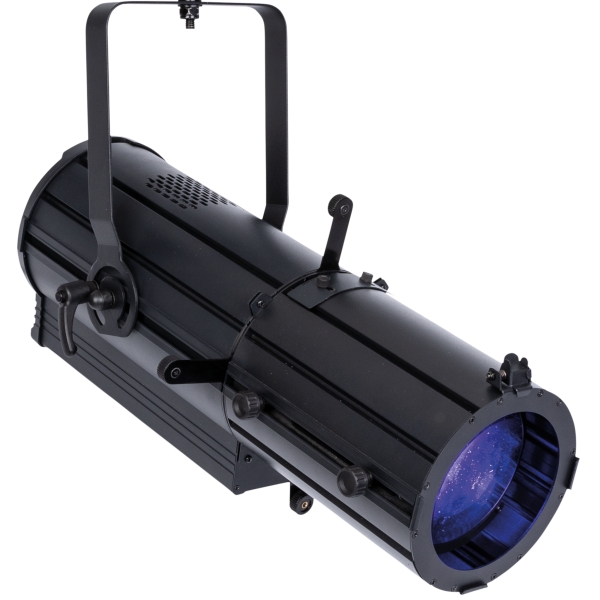

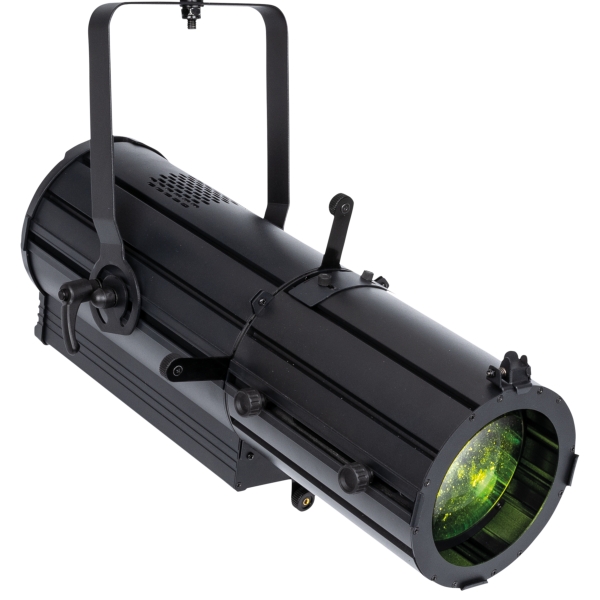

Showtec Act Profile 150 RGBAL LED Zoom Profile

Name: Showtec Act Profile 150 RGBAL LED Zoom Profile
Brand: Showtec
Price: 557.28 GBP
Availability: InStock

Price Each £464.40 (£557.28 Including VAT at 20%)

REF: JP114003

Quantity:

Showtec Act Profile 150 RGBAL LED Zoom Profile

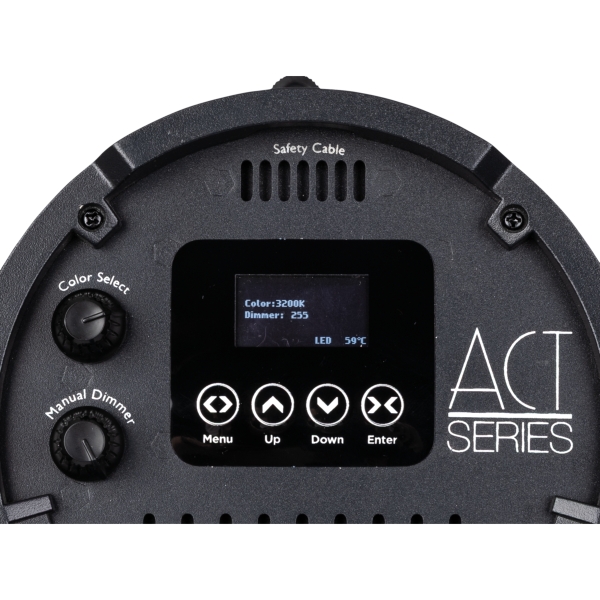

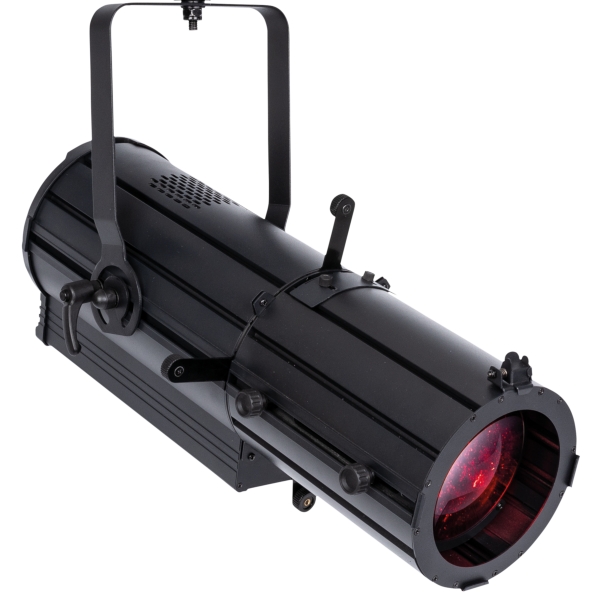

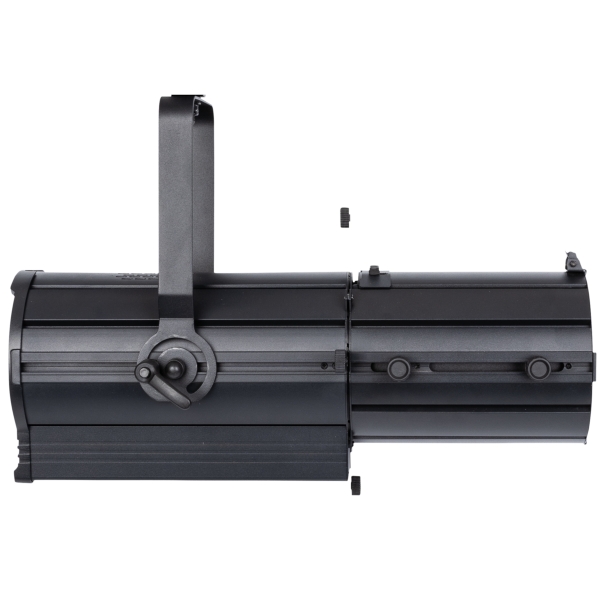

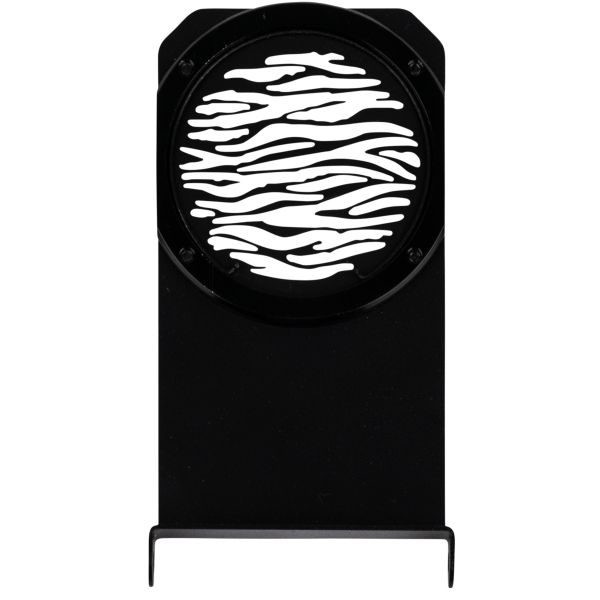

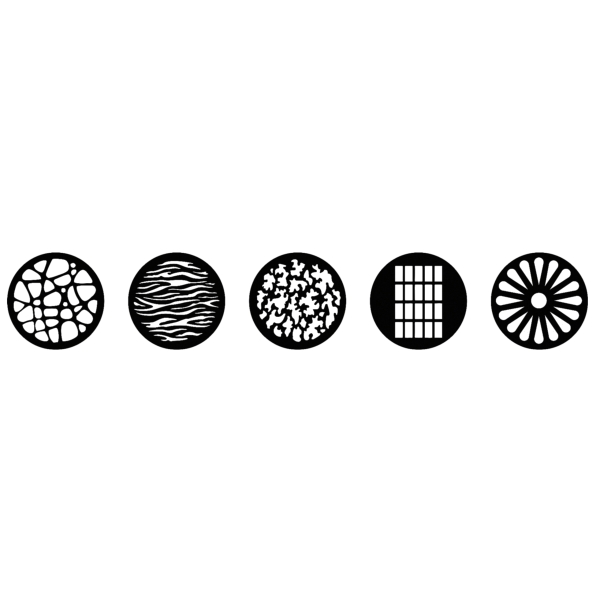

The Showtec Act Profile 150 RGBAL LED Zoom Profile is a compact 150-watt RGBAL LED profile with high CRI and silent operation, suitable for theatrical applications, schools, museums, and exhibitions. It projects a bright, hard-edged beam of light within a 23° - 46° manually adjustable zoom range. The ACT Profile 150 RGBAL can be controlled via DMX, RDM, and it is equipped with one knob for manual colour and dimmer control. It comes with 5 design gobos and a four-blade shutter system, allowing you to add the proper intensity of light where it's needed.

Click Here for Printer Friendly Version

Showtec Act Profile 150 RGBAL LED Zoom Profile Features

- 150 W RGBAL LED with high CRI for accurate colour rendering
- Suitable for theatrical applications, museums, and exhibitions
- Manually adjustable zoom, and shutters
- Hard-edged field of light

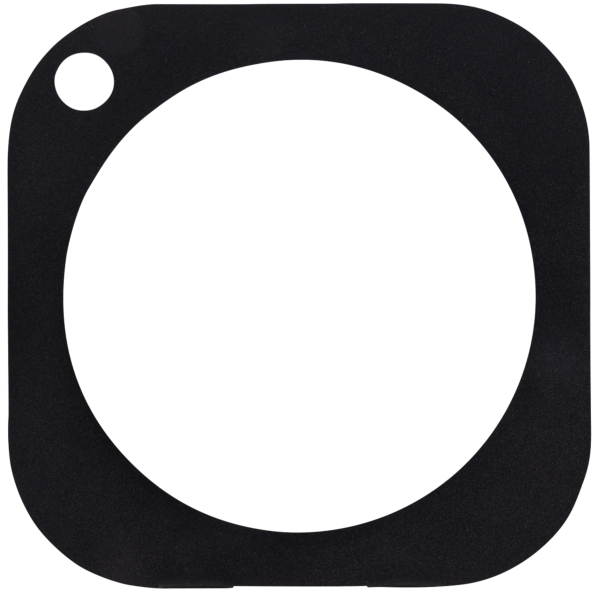

- Filter frame included

Showtec Act Profile 150 RGBAL LED Zoom Profile Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 150 W
- LED Colour Type: RGBAL
- Refresh Rate (Max.): 1 kHz
- Illuminance @ 3 m: 3260 lx
- Luminous Flux (Total): 3571 lm
- CRI: 91
- Minimum CCT: 2700 K
- Maximum CCT: 10000 K

Optical:
- Beam Angle Minimum (Circular): 23 °
- Beam Angle Maximum (Circular): 46 °
- Zoom Type: Manual
- Zoom Ratio: 1:2
- Zoom Minimum: 23 °
- Zoom Maximum: 46 °

Control and Programming:
- Control Mode: DMX, Manual, RDM
- DMX Channels: 5, 8, 12
- Protocols: DMX, RDM

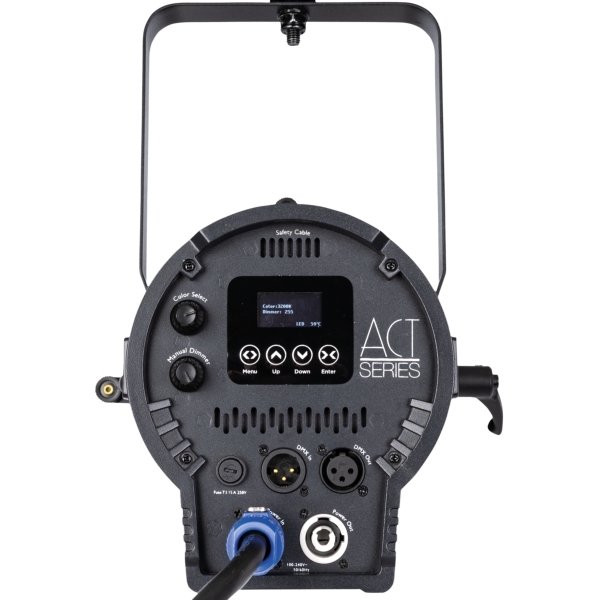

- Display: OLED
- Display Size: 1.3 "
- Dimmer Resolution: 16 bit

Dynamic Effects:
- Dimmer: 0-100 %

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 180 W
- Fuse: 3.15 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- Length (mm): 531 mm (20.906")
- Width (mm): 226 mm (8.898")
- Height (mm): 373 mm (14.685")
- Weight: 6.15 kg (13.558 lb)
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium, Metal
- Colour: Black

Product Properties:
- Cooling: Forced Convection

Rigging:
- Mounting Options: Bracket
- Safety Attachment: Yes
- Safety Eyes: 1

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)

Further Product Information Below

Showtec Act Profile 150 RGBAL Manual (PDF)

Showtec Act Profile 150 RGBAL Data Sheet (PDF)

Showtec Act Profile 150 RGBAL Declaration of Conformity (PDF)

Showtec Act Fresnel 150 RGBAL LED Fresnel Supplied With

- PowerCON cable
- Barndoor
- Filterframe
