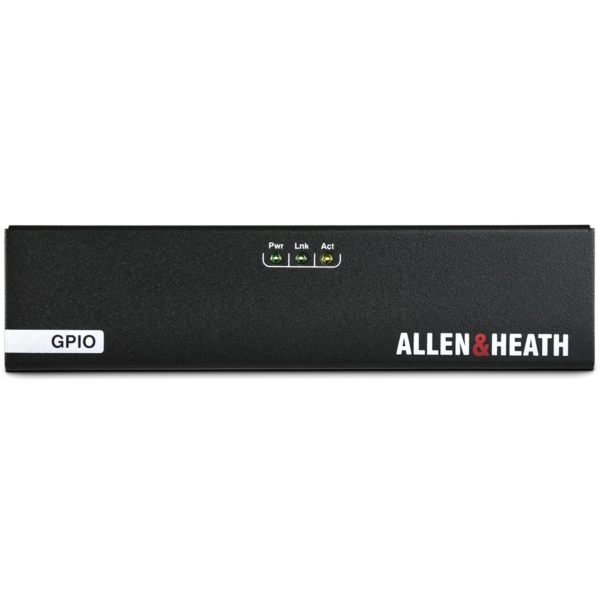

Allen & Heath GPIO PoE Enabled GPIO Interface with 8 Inputs & 8 Outputs

Allen & Heath GPIO PoE Enabled GPIO Interface with 8 Inputs & 8 Outputs Features

- Up to 8 networked GPIO units can be added to a AHM/dLive/Avantis system
- Networked Cat5 connection to AHM, Avantis mixer, dLive MixRack or Surface (<100m)

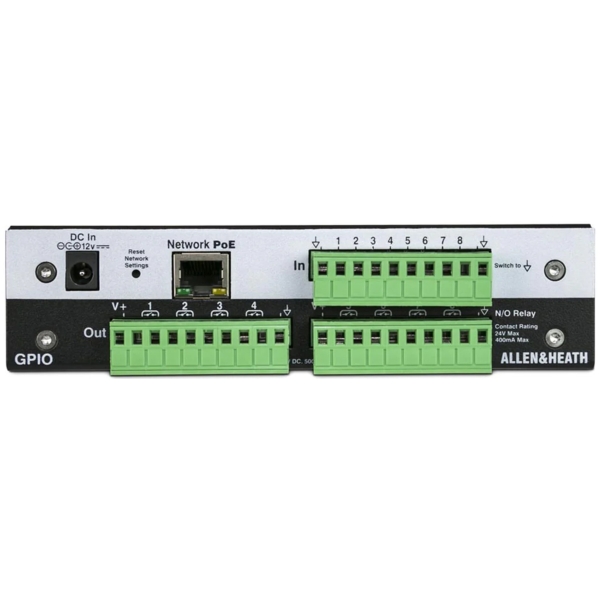

- 8 opto-isolated inputs
- 8 normally open (N/O) relay outputs, one of them configurable to Normally Closed output (N/C)
- Industry standard Phoenix connectors
- Freestanding or rack-mount (1u / ½-Width) operation
- PoE (IEEE 802.3af-2003) compliant
- IO parameters configured via Avantis mixer, or dLive Surface or Director
- 2 10V outputs (500mA max)

Allen & Heath GPIO PoE Enabled GPIO Interface with 8 Inputs & 8 Outputs Specifications

- Relay Output Max Voltage: 24V
- Relay Output Max Current: 400mA
- External Power Output: +10VDC / 500mA max
- Operating Temperature Range: 0°C to 35°C (32°F to 95°F)
- Power Requirement: 12V DC via external PSU, 1A max or PoE (IEEE 802.3af-2003), 0.9A max
- Dimensions (W x H x D): 171 x 43 x 203 mm
- Weight: 1.2 kg

Further Product Information Below

Allen & Heath GPIO Manual (PDF)

Allen & Heath GPIO Data Sheet (PDF)

Allen & Heath GPIO Quick Reference Guide (PDF)

Allen & Heath GPIO PoE Enabled GPIO Interface with 8 Inputs & 8 Outputs Compatibility

- Allen & Heath AHM
- Allen & Heath Avantis
- Allen & Heath dLive
