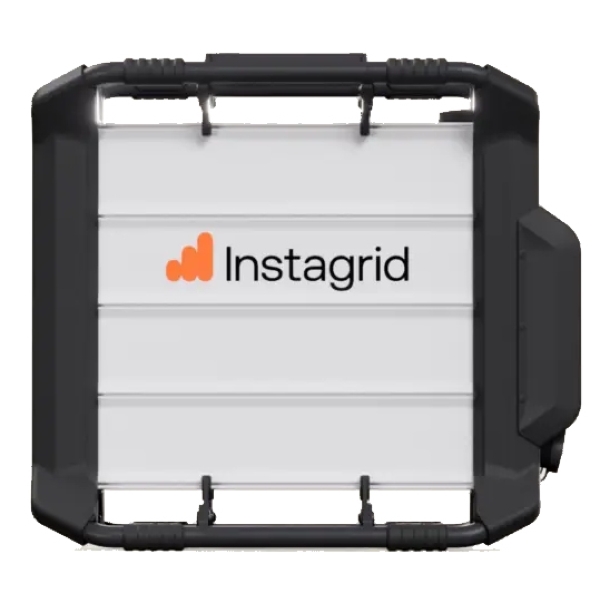

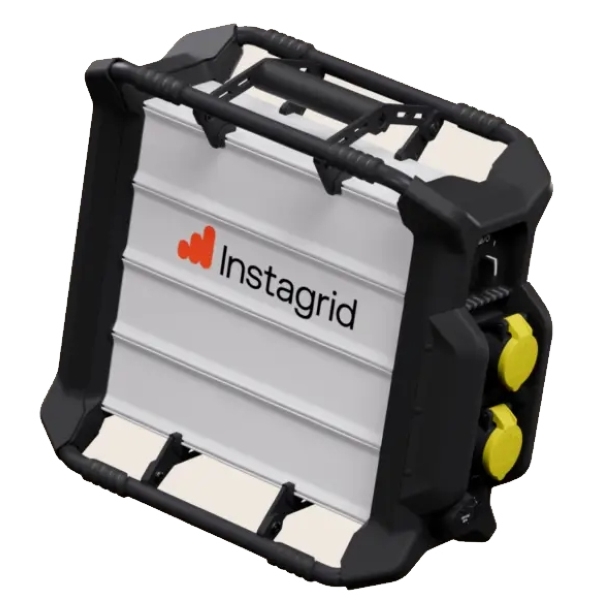

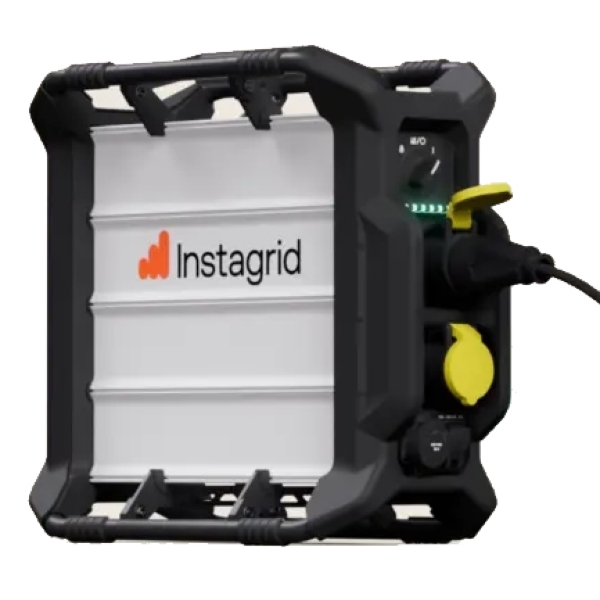

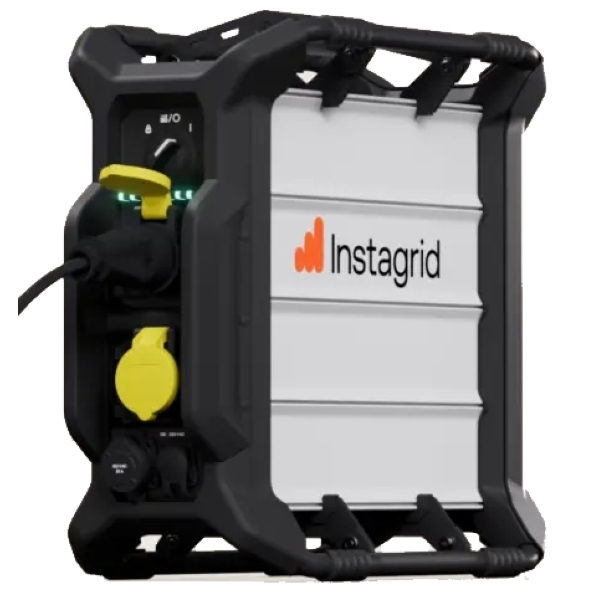

Instagrid GO 36 LV 110V Portable Power Supply - IP54

Instagrid GO 36 LV 110V Portable Power Supply Features

- No noise, no fumes. Fanless design and no exhaust emissions
- Truly portable, single-handed mobility (21 kg)
- Gridlike performance, delivering 3.6 kW rated output and 18 kW peak power

Instagrid GO 36 LV 110V Portable Power Supply Specifications

Mode of operation: Discharging
- Output voltage: 110 V AC / 50 Hz
- Rated output power: 3,600 W (2 x 16 A)
- 150% overload / 5,400 W (49.0 A): up to 450.0 seconds
- 200% overload / 7,200 W (65.0 A): up to 60.0 seconds
- 250% overload / 9,000 W (82.0 A): up to 16.0 seconds
- 300% overload / 10,800 W (98.0 A): up to 6.5 seconds
- Peak Power: 18,000 W
- Circuit breaker: 32 A eFuse (tripping characteristic C) and one 16 A thermal breaker per CEE receptacle
- Ambient temperature: -20 °C to 60 °C

Mode of operation: Charging
- Input voltage: 100 - 240 V AC / 50 - 60 Hz
- Rated input current: 6 A
- Rated input power: 600 - 1,440 W
- Charge time / 0 to 80% (240 V AC): below 1.5h (at room temperature 25 °C)
- Charge time / 0 to 100% (240 V AC): below 2.0h (at room temperature 25 °C)
- Ambient temperature: 0 °C to 45 °C

General information

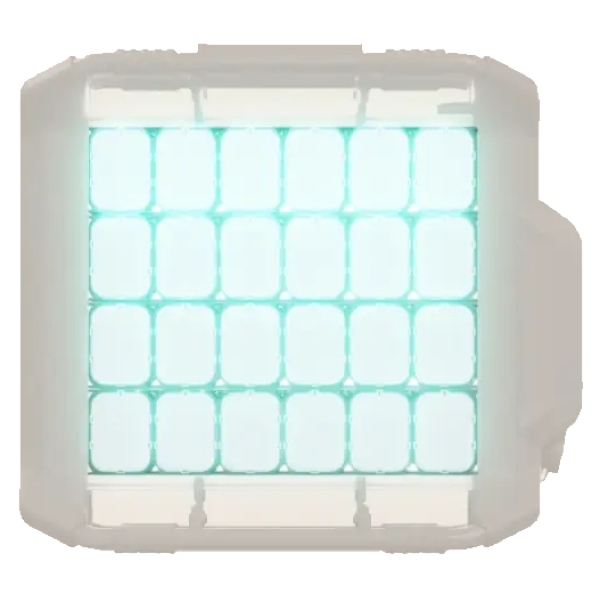

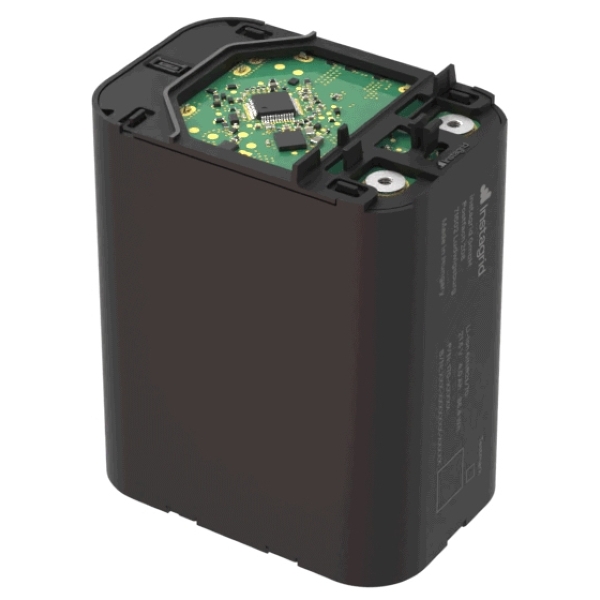

- Nominal battery capacity: 2,074 Wh (24 packs / 86.4 Wh each)
- Dimensions: 458 x 210 x 420 mm
- Weight: 21 kg
- IP Class: IP54
- Protection class: Class II / double-insulated
- Noise emission: below 30 dB(A) / whisper-quiet (fanless)

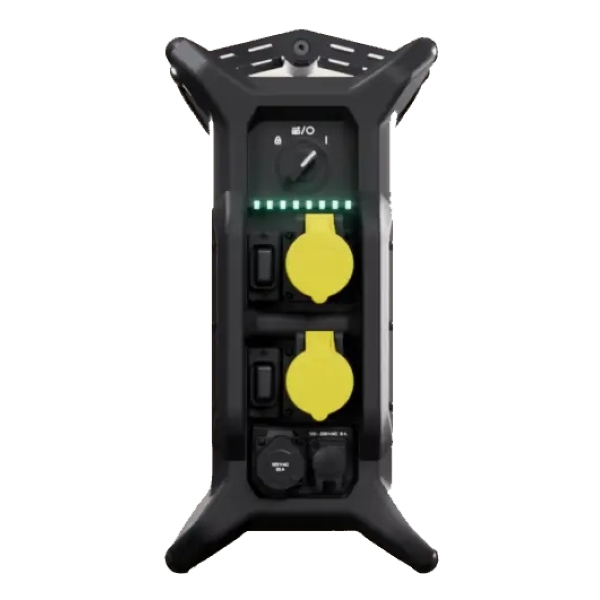

Receptacles:
- Output receptacle (120 V AC): 2x CEE 3p 4h 16 A
- Output receptacle (120 V AC): Instagrid Accessories Outlet (e.g. with adapter to CEE 3p 4h 32 A)
- Input receptacle: Neutrik powerCON® TRUE1 TOP
